Alert rules

An alert rule watches one signal, checks it against a threshold every minute, and opens an incident when the threshold is crossed for long enough. Each incident notifies the destinations attached to the rule.

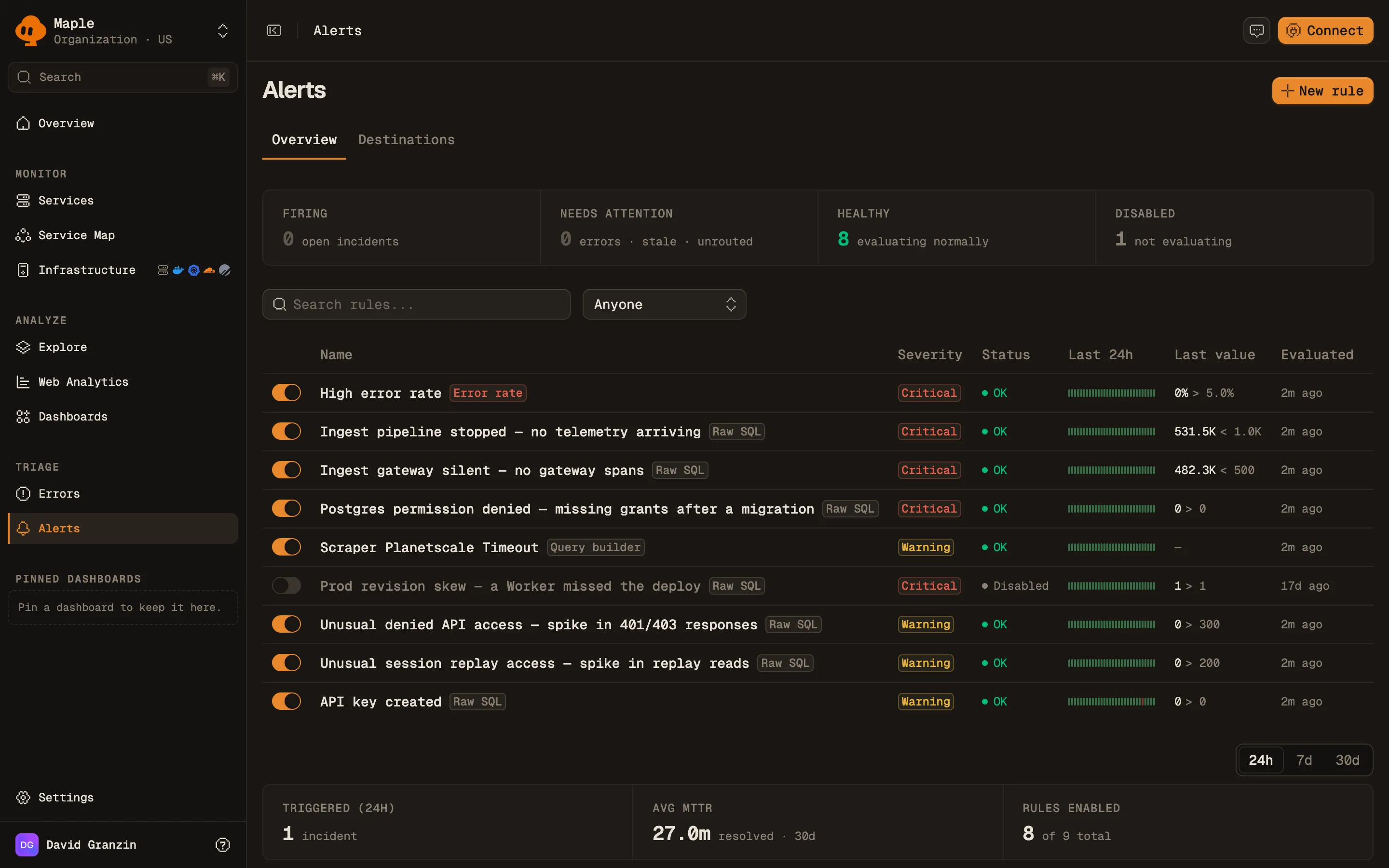

You manage rules on the Alerts page. Creating, editing and deleting rules requires the organization admin role.

Prerequisites

• Telemetry arriving in Maple. Built-in signals read traces.
• At least one notification destination. A rule cannot be saved without one.

Create a rule

1. Open Alerts and click New rule. To start from a service, open the service and click Create Alert, which fills in the scope.

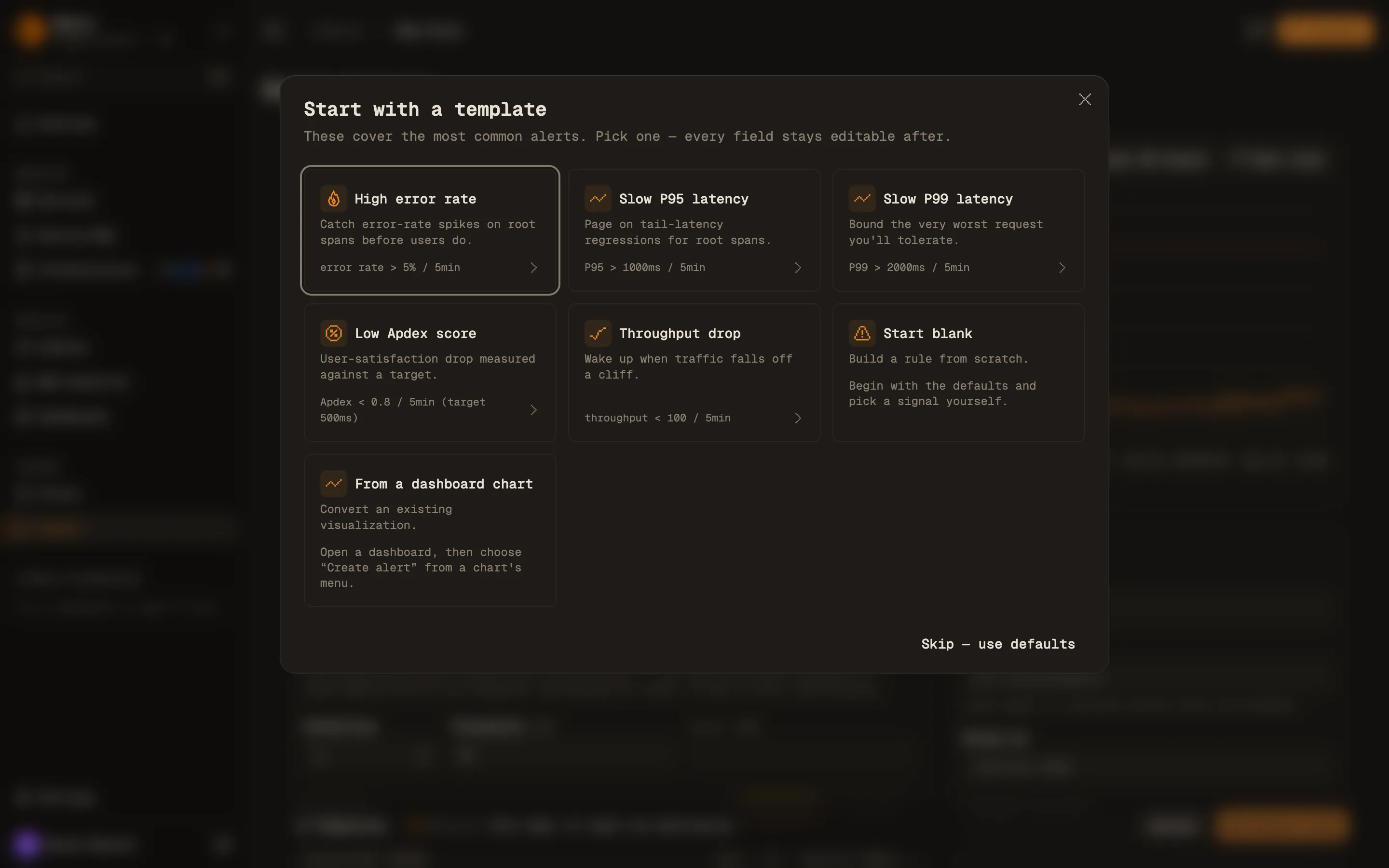

2. Start with a template opens first. Pick a template, Start blank, or From a dashboard chart. Every field a template sets stays editable.
3. Fill in Signal & threshold, Scope, Notifications and Details, described below.
4. Click Test rule to preview the rule against past data.
5. Click Create rule.

The templates:

Signals

The signal kind is Built-in, Query or Raw SQL.

Built-in signals read the entry-point spans of each service: server and consumer spans, and trace roots. That is the same set of requests the service pages chart.

Counts and rates are weighted for sampling. See Sampling and throughput.

A built-in signal only sees entry-point spans. A service that records a failure on a child span and still returns success from its entry point stays healthy on these signals. Use a Query or Raw SQL rule for that case.

Query (builder_query) uses the same query builder as dashboard charts. It can read traces, logs, metrics or product events, with its own filters and group-by. The quickest way to build one is from a chart: open a dashboard, open the chart’s menu and choose Create alert.

Raw SQL (raw_query) runs your own SQL. The query must include $__orgFilter and a $__timeFilter(...) on the time column, and return a time bucket and a value. Reduce buckets by turns the buckets in the window into one value: Last bucket, Sum, Average, Minimum or Maximum. To evaluate several groups, return a group column. Return a samples column with the number of events behind each row: Min samples sums it, and without it every row counts as one sample, so the minimum counts buckets rather than events. See the SQL reference.

For Query and Raw SQL rules the query carries its own filters, so the Scope section is hidden.

Threshold

Condition is one of >, >=, <, <=, =, !=, between or not between. The range conditions use Lower and Upper. Threshold is the value the signal is compared against.

Severity is Warning or Critical. It is shown on the incident and in every notification.

Scope

Scope applies to built-in signals.

• Services. Empty means every service. When you pick more than one service, Maple evaluates each service on its own and opens a separate incident per service.
• Environments. Empty means every environment. Otherwise the rule only counts spans from the listed deployment environments (deployment.environment.name).
• Group by. With no services selected, a group-by such as service.name or an attribute like attr.http.route evaluates each group on its own. You get one incident per group that breaches, instead of one blended value that may never cross the threshold.
• Exclude services. Skips named services. It needs Group by set to service.name and no services selected.

Evaluation timing

Maple evaluates every enabled rule once a minute. Each check aggregates the last Window (min) minutes, so a 5-minute window is a rolling 5 minutes re-scored every 60 seconds.

Evaluation timing is collapsed to a summary line (for example 5min · 2× · renotify 30min) until you open it:

A skipped check counts neither as a breach nor as healthy. It leaves the breach and healthy counters where they were.

A window with no data at all is skipped, with two exceptions: a rule with Alert when there is no data on (alert_on_no_data) counts it as a breach, and otherwise a Throughput rule with < or <= treats it as zero. Turn the switch on for Raw SQL rules, where a query that stops matching otherwise goes quiet instead of firing. It is not available on grouped rules: a group that stops reporting keeps its open incident until its telemetry returns. On a Raw SQL rule that returns a group column, it fires only when the query returns no rows at all.

The Min samples check runs before the threshold comparison, and that zero still counts as zero samples. For Throughput the sample count is the signal, so a drop rule with the blank form’s default of 50 skips every window below 50 requests, including a full outage, and cannot fire for those windows. Set Min samples to 0 for throughput drop rules, as the Throughput drop template does. Then traffic stopping entirely fires the rule.

Short windows on low-traffic services are noisy, because a few slow or failed requests move the value a long way. Raise Min samples or widen the window for those services.

Notifications

Pick one or more destinations in Notifications. Send test delivers a test notification for this rule to the selected destinations.

Message template customizes the title and Markdown body of Slack, Discord, Telegram and PagerDuty notifications with {{ variable }} substitution, for example {{ rule.name }}, {{ value }} or {{ links.app }}. Leave it blank for the built-in format. Email, webhook and Hazel destinations always use the built-in format.

Details

Rule name is required. Tags (up to 20, each up to 32 characters) group and filter rules and incidents on the Alerts page. Notes are free text shown with the rule.

Preview a rule

The chart at the top of the form replays the rule over a past time range. Pick the range and click Test rule. The chart shows the value for each window, the threshold, and shaded spans where the rule would have held an incident open. The badge reads Would trigger or Within threshold for the latest window.

The preview sends nothing. Use it to check that a threshold would not have fired all week, or would have caught last Tuesday’s incident.

Create a rule over the API

Rules are available at /v2/alerts/rules on https://api.maple.dev (https://api.eu.maple.dev for EU organizations). Use an API key (maple_ak_…) from Settings → API Keys. Creating, updating, deleting and testing a rule requires the alerts:write scope and the org admin role.

curl -X POST https://api.maple.dev/v2/alerts/rules \
  -H "Authorization: Bearer maple_ak_…" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Checkout error rate",
    "signal_type": "error_rate",
    "comparator": "gt",
    "threshold": 0.05,
    "window_minutes": 5,
    "service_names": ["checkout"],
    "environments": ["production"],
    "severity": "critical",
    "minimum_sample_count": 50,
    "destination_ids": ["dest_oybbpTBhtSFGShMjjLiCrh"]
  }'

Error rate thresholds are 0 to 1 ratios in the API (0.05 is 5%). destination_ids must name at least one existing destination.

To preview a rule over a past range, POST /v2/alerts/rules/preview with the rule under rule and the range in start_time and end_time. It needs the alerts:read scope and sends nothing.

curl -X POST https://api.maple.dev/v2/alerts/rules/preview \
  -H "Authorization: Bearer maple_ak_…" \
  -H "Content-Type: application/json" \
  -d '{
    "rule": {
      "name": "Checkout error rate",
      "signal_type": "error_rate",
      "comparator": "gt",
      "threshold": 0.05,
      "window_minutes": 5,
      "service_names": ["checkout"],
      "severity": "critical",
      "destination_ids": ["dest_oybbpTBhtSFGShMjjLiCrh"]
    },
    "start_time": "2026-07-14T00:00:00.000Z",
    "end_time": "2026-07-15T00:00:00.000Z"
  }'

The response lists the value and status of each window per group in series, and the spans where an incident would have been open in would_fire.

POST /v2/alerts/rules/test evaluates a rule once against current data. Set send_notification to true to also deliver a test notification. See the API reference for every endpoint and field.

Troubleshooting

• The rule never fires. Open the rule and look at its checks. If every check is skipped, each one says why: no data means the scope or query matches nothing, below min samples means the window has fewer samples than Min samples. Check the service names and environments against what is arriving.
• The rule fires and resolves over and over. Raise Breaches to fire and Healthy to resolve, or widen the window.
• Save is disabled. The action bar lists what is missing, such as a rule name or a destination.

Next steps

• Incidents: what happens after a rule fires.
• Apdex alerts: choosing the target and threshold for an Apdex rule.
• Uptime monitoring: availability alerts from traces, and HTTP checks from the OpenTelemetry Collector.
• Notification destinations: where notifications go.
